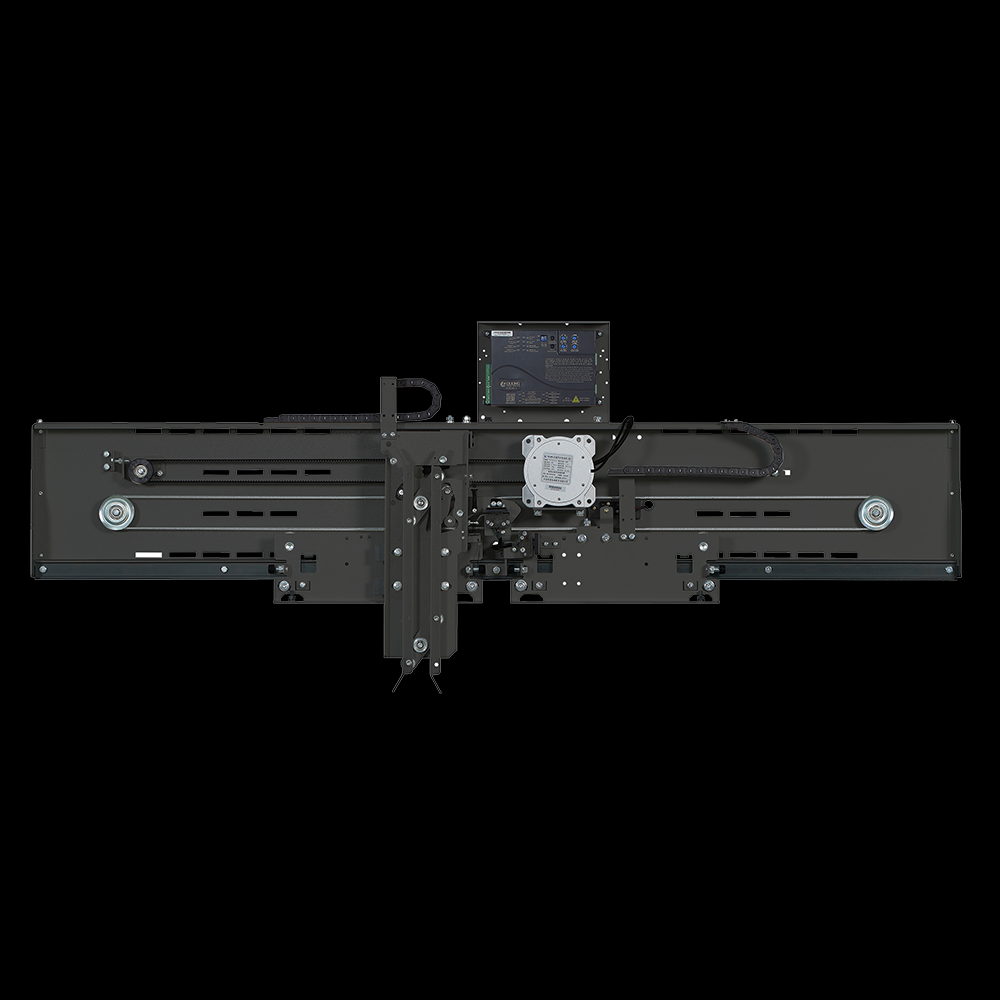

Center Opening permanent magnet synchronous Operatot OMJ-102 series
Identification number:
OMJ102A (car top type) ,OMJ102B (car frame straight beam type) ,OMJ102C (front wall lintel type)
Features:
◎ Adopting fully closed-loop servo control technology, the door opening and closing curve is more comfortable
◎ Adopting high-performance permanent magnet synchronous motor with high rated torque, efficient, energy-saving and environmentally friendly
◎ The synchronous door knife (OMS102) with integrated car door lock function is adopted, which is easy to install and debug on site, and has a lower failure rate
The maximum weight of the drag hall and car door panel is 200kg
Optimize the structure of the gantry crane, making it more compact and suitable for small shafts with large doors
The door hanging board is designed with anti impact and anti fall safety hooks, which have passed the 45kg soft pendulum experiment
