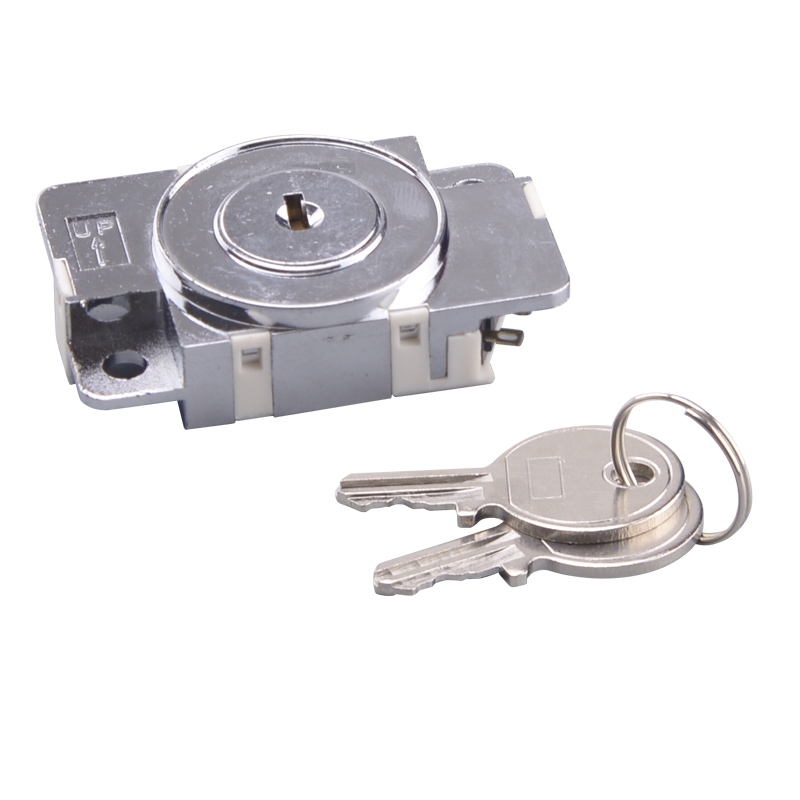

Model: D08 (three levels)
Rated electrical load: 2A DC30V 3A AC125V
Electrical lifespan ≥ 50000 cycles
Contact resistance ≤ 200m Ω
Insulation resistance ≥ 500M Ω
Voltage resistance strength: AC1500V (50/60HZ) for 1 minute
Note: XS0048 wiring harness component can be equipped with L=1000mm A/B end pin soldering wire C/ON end, electronic wire 1007 22 # yellow wire; Protection of welding wire end thermoplastic pipe“
