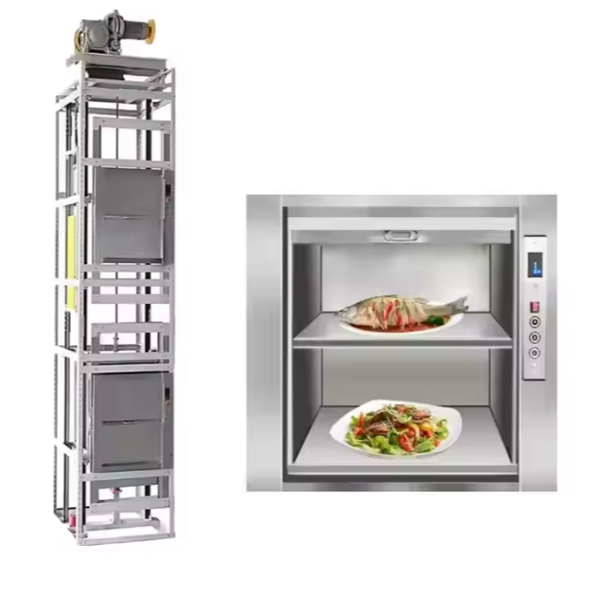

Main Spec
-Capacity: 100~300kg
-Lift height: 1~20m (as customer request)
-Overhead height: 2460mm
-Carbin size: 600*600*800mm
-Shaft size: 1000*1000mm
-Drive Motor: Motor with pulley
-Travel: 2floors/2stop
-Voltage: 380v, 3phase, 50hz
We have Windown Type &Floor Type for your selection

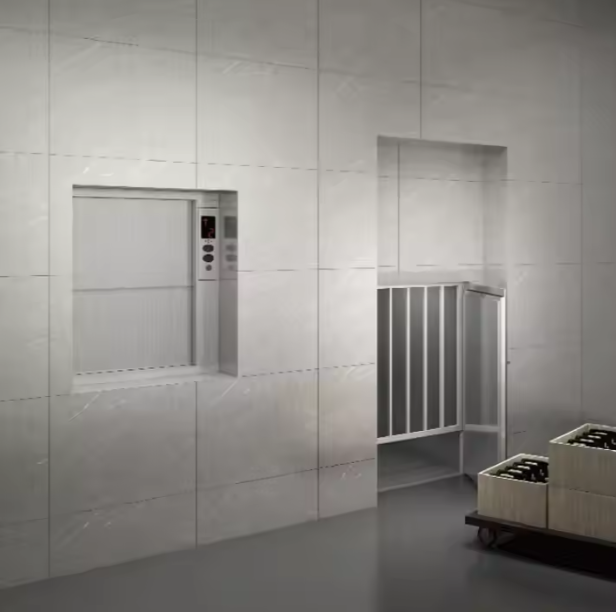

Windown Type:

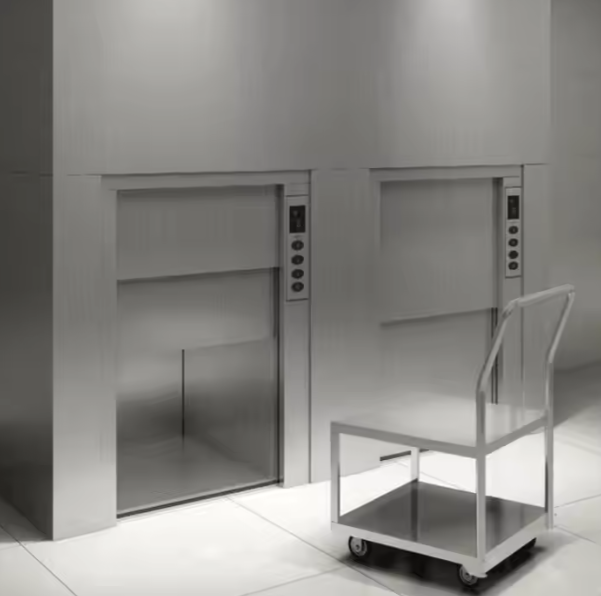

Floor Type
Basic Functions
1.Floor display
2.Open or closed sate display of the door
3.Key switch
4.Calling response
5.Running direction display
6.Overtime running protection
7.Contactor conglutination or locked protection
8.Trouble self-diagnosis
9.Emergency stop switch
10.Wrong or short phase protection
11.Motor overcurrent protection
12.Inspection operation
13.Emergency stop circuit inspection.
Refer Video in CY Channel
If you need this product, you need to provide the following information：
1.Window type or Floor type?
2.The cabin size
3.Load capacity (100-300KG availble)
4.Lifting height?
3.Local voltage?
With the above information we will do our best supply you solutions.
